MHDAS2M060YDE60

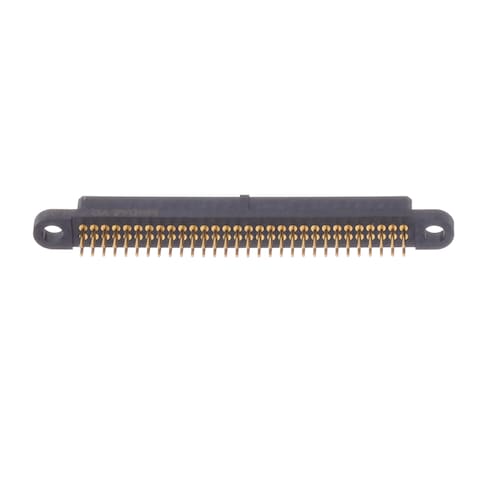

Name: Amphenol MHDAS2M060YDE60
Brand: Amphenol Socapex
SKU: 523-MHDAS2M060YDE60
Price: 109.41 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

523-MHDAS2M060YDE60

Mfr. No:

MHDAS2M060YDE60

Mfr.:

Amphenol Socapex

Description:

Rectangular Mil Spec Connectors Micro HDAS 60 male straight pc tail contacts60 position pin 1.27 mm 2 row straight

Datasheet:

MHDAS2M060YDE60 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol Socapex MHDAS2M060YDE60

In Stock: 5

Stock:: 5 Can Dispatch Immediately

An unexpected error occurred. Please try again later.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	109,41 €	109,41 €
	101,24 €	1.012,40 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Rectangular Mil Spec Connectors
RoHS:
Product:	Connectors
Number of Positions:	60 Position
Number of Rows:	2 Row
Termination Style:	Solder
Mounting Style:	PCB Mount
Contact Gender:	Pin (Male)
Contact Plating:	Gold
MIL Type:	MIL-DTL-55302G
Series:	HDAS
Mounting Angle:	Straight
Brand:	Amphenol Socapex
Contact Material:	Copper Alloy
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	FR
Current Rating:	3 A
Housing Material:	Liquid Crystal Polymer (LCP)
Insulation Resistance:	5 GOhms
Maximum Operating Temperature:	+ 150 C
Minimum Operating Temperature:	- 65 C
Pitch:	1.27 mm
Product Type:	Rectangular MIL Spec Connectors
Subcategory:	MIL-Spec / MIL-Type
Voltage Rating:	750 V

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

MHDAS2M060YDE60 Datasheet (PDF)

Models

MHDAS2M060YDE60 Symbol & Footprint by SnapMagic

This functionality requires JavaScript to be enabled.

TARIC:: 8536693000
USHTS:: 8536694040
ECCN:: EAR99

Micro HDAS High-Performance Connectors

Amphenol Socapex Micro HDAS High-Performance Connectors save space on PC boards while maintaining a high level of performance. The micro board-to-board and board-to-wire connectors are offered in multiple sizes from 4 to 60 contacts on two rows. These versatile connectors feature a high-density 1.27mm pitch with a 7.4mm distance between boards and PC tail or crimp contact terminations. Amphenol Socapex Micro HDAS High-Performance Connectors meet and exceed MIL-DTL-55302G and 83513G and are intermateable with Nicomatic EMM connectors. Typical applications include commercial avionics and airframes, military avionics and airframes, and ground vehicles.

HDAS High-Performance PCB Connectors

Amphenol HDAS High-Performance PCB Connectors offer a robust and simple design along with high density and high performance in extreme conditions. HDAS connectors reduce contact pitch, increase contact density, and are ideal when installation, cost, and reliability must be considered. The HDAS connectors feature cylindrical machined pins with proven starclip technology used for the socket (6 contact tines). Lateral rails on the male connectors ensure an optimum protection of the contacts from external damage. The use of LCP material allows all types of soldering, including high-temperature processes for lead-free requirements. Designed especially for harsh environments, high temperatures, and high vibration levels, the HDAS PCB connectors surpassed MIL-DTL-55302 requirements.
