IPD11DP10NMATMA1

Name: Infineon IPD11DP10NMATMA1
Brand: Infineon Technologies
SKU: 726-IPD11DP10NMATMA1
Price: 1.76 EUR
Availability: InStock

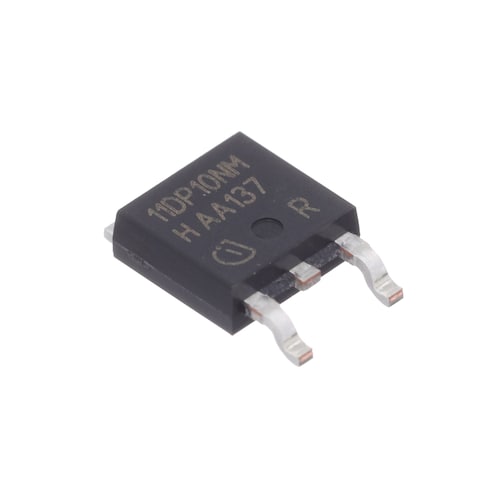

Images are for reference only
See Product Specifications

Mouser No:

726-IPD11DP10NMATMA1

Mfr. No:

IPD11DP10NMATMA1

Mfr.:

Infineon Technologies

Description:

MOSFETs IFX FET >80 - 100V

Datasheet:

IPD11DP10NMATMA1 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Infineon Technologies IPD11DP10NMATMA1

In Stock: 2.882

Stock:: 2.882 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 16 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,76 €	1,76 €
	1,08 €	10,80 €
	0,762 €	76,20 €
	0,606 €	303,00 €
	0,573 €	573,00 €
Full Reel (Order in multiples of 2500)
	0,486 €	1.215,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Infineon
Product Category:	MOSFETs
RoHS:
REACH - SVHC:
Technology:	Si
Mounting Style:	SMD/SMT
Transistor Polarity:	P-Channel
Number of Channels:	1 Channel
Vds - Drain-Source Breakdown Voltage:	100 V
Id - Continuous Drain Current:	22 A
Rds On - Drain-Source Resistance:	111 mOhms
Vgs - Gate-Source Voltage:	- 20 V, 20 V
Vgs th - Gate-Source Threshold Voltage:	4 V
Qg - Gate Charge:	59 nC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 175 C
Pd - Power Dissipation:	125 W
Channel Mode:	Enhancement
Packaging:	Reel
Packaging:	Cut Tape
Brand:	Infineon Technologies
Country of Assembly:	MY
Country of Diffusion:	AT
Country of Origin:	AT
Product Type:	MOSFETs
Series:	IPD11DP10
Factory Pack Quantity:	2500
Subcategory:	Transistors
Part # Aliases:	IPD11DP10NM SP001656992

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

IPD11DP10NMATMA1 Datasheet (PDF)

Product Catalogs

Infineon's Latest Power and Sensing Guide (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8541290000
CNHTS:: 8541290000
USHTS:: 8541290065
ECCN:: EAR99

12V-250V P-Channel Power MOSFETs

Infineon 12V-250V P-Channel Power MOSFETs offer the designer a new option that can simplify circuitry while optimising performance. The main advantage of a P-Channel device is the reduction of design complexity in medium- and low-power applications. P-Channel Power MOSFETs are ideally suited for battery protection, reverse polarity protection, linear battery chargers, load switching, DC-DC converters, and low-voltage drive applications.
