MDSR-4-12-23

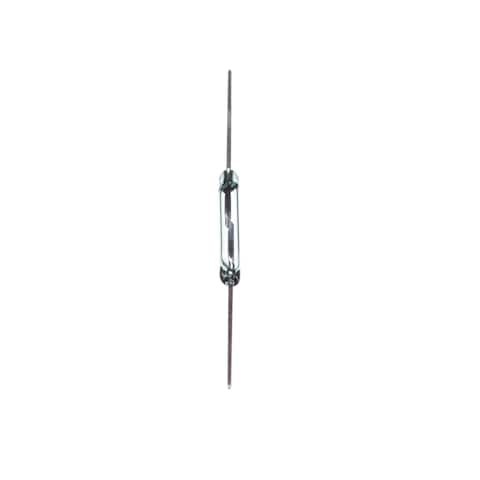

Name: Littelfuse MDSR-4-12-23
Brand: Littelfuse
SKU: 934-MDSR-412-23
Price: 1.1 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

934-MDSR-412-23

Mfr. No:

MDSR-4-12-23

Mfr.:

Littelfuse

Description:

Magnetic/Reed Switches SWITCH REED

Datasheet:

MDSR-4-12-23 Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 1.946

Stock:: 1.946

Can Dispatch Immediately

An unexpected error occurred. Please try again later.
On Order:: 1.000
Factory Lead Time:: 11

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	1,10 €	1,10 €
	0,963 €	9,63 €
	0,829 €	20,73 €
	0,745 €	74,50 €
	0,692 €	173,00 €
	0,659 €	329,50 €
	0,619 €	619,00 €
	0,607 €	1.214,00 €
	0,588 €	2.940,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Littelfuse
Product Category:	Magnetic/Reed Switches
RoHS:
Switch Type:	Sub-Miniature
Contact Form:	SPST
Operate Range:	12 AT to 23 AT
Color:	Clear
Mounting Style:	PCB Mount
Termination Style:	Axial
Packaging:	Bulk
Brand:	Littelfuse
Contact Position:	Normally Open
Country of Assembly:	PH
Country of Diffusion:	Not Available
Country of Origin:	PH
Illuminated:	Non-Illuminated
Product Type:	Reed Switches
Series:	MDSR-4
Factory Pack Quantity:	1000
Subcategory:	Switches
Tradename:	Hamlin
Voltage Rating DC:	200 VDC
Unit Weight:	201,183 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

MDSR-4-12-23 Datasheet (PDF)

PCN

This functionality requires JavaScript to be enabled.

TARIC:: 8536508099
CNHTS:: 8536500090
USHTS:: 8536509065
JPHTS:: 853650090
BRHTS:: 85365090
ECCN:: EAR99

Medical Equipment Solutions

Littelfuse Medical Equipment Solutions provide robust designed and quality components needed to help with reliable operating and equipment up-time. These solutions include ventilators, defibrillator, and ultrasounds. Littelfuse Medical Equipment Solutions are ideal for life support systems, patient care equipment, and patient monitoring systems.
