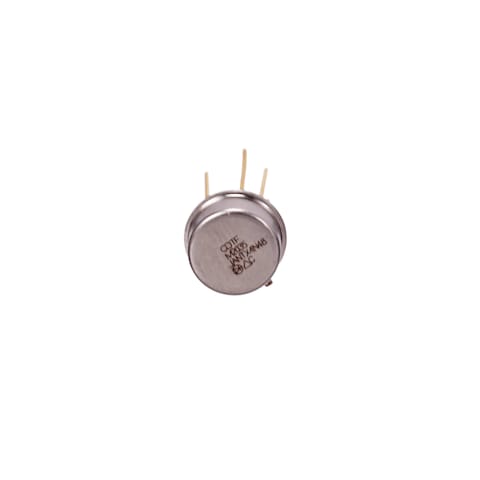

JANTX4N48

Optek / TT Electronics
828-JANTX4N48
JANTX4N48

Mfr.:

Description:
Transistor Output Optocouplers TO-78 OCI

Datasheet:
ECAD Model:
Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Availability

Stock:
0

You can still purchase this product for backorder.

On Order:
50
Factory Lead Time:
53
Weeks Estimated factory production time for quantities greater than shown.
Quantities greater than 150 will be subject to minimum order requirements.
Long lead time reported on this product.
Minimum: 1   Multiples: 1
Unit Price:
-,-- €
Ext. Price:
-,-- €
Est. Tariff:

Pricing (EUR)

Qty. Unit Price
Ext. Price
37,01 € 37,01 €

Product Attribute Attribute Value Select Attribute
TT Electronics
Product Category: Transistor Output Optocouplers
RoHS:
Through Hole
TO-78-6
1 Channel
1000 Vrms
NPN Phototransistor
100 %
500 %
1 mA
1.5 V
40 V
50 mA
300 mV
20 us
20 us
2 V
300 mW
- 55 C
+ 125 C
Brand: Optek / TT Electronics
Configuration: 1 Channel
Country of Assembly: Not Available
Country of Diffusion: Not Available
Country of Origin: US
Current Transfer Ratio: 100 %
Product Type: Transistor Output Optocouplers
Factory Pack Quantity: 100
Subcategory: Optocouplers
Unit Weight: 46,050 g
Products found:
To show similar products, select at least one checkbox
Select at least one checkbox above to show similar products in this category.
Attributes selected: 0

Datasheet

This functionality requires JavaScript to be enabled.

TARIC:
8541490000
CNHTS:
8541490000
CAHTS:
8541490020
USHTS:
8541498000
JPHTS:
854149000
MXHTS:
8541499900
BRHTS:
85414900
ECCN:
EAR99

Hi-Reliability Optically Coupled Isolators

TT Electronics 828-JANTX4N4x Hi-Reliability Optically Coupled Isolators consist of an infrared emitting diode and an NPN silicon phototransistor. The diode and phototransistor are mounted in a hermetically sealed TO-78 package. These isolators provide a high current transfer ratio, 1kV electrical isolation, and a base contact for conventional transistor biasing. JANTX devices are JEDEC registered, DSCC qualified, and processed to MIL-PRF-19500. These devices are designed for military or harsh environments. Other applications include high-voltage isolation between input and output, industrial equipment, medical equipment, and office.
