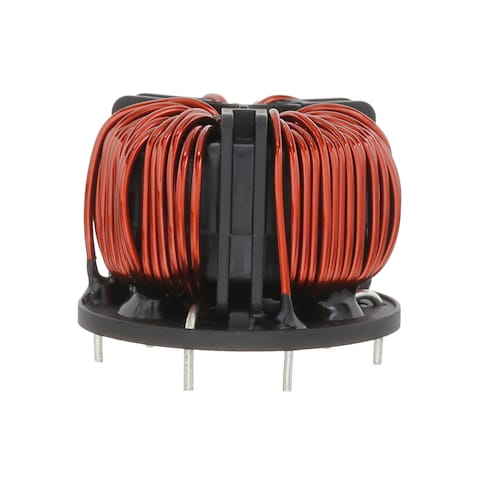

RT8132-8-4M8

TE Connectivity / Schaffner
631-RT8132-8-4M8
RT8132-8-4M8

Mfr.:

Description:
Common Mode Chokes / Filters 8A 4.8mH 3-Wire Horz PCB Mounting

Datasheet:
ECAD Model:
Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.
More Information
Learn more about TE Connectivity / Schaffner RT8132-8-4M8

In Stock: 77

Stock:
77 Can Dispatch Immediately
Factory Lead Time:
24 Weeks Estimated factory production time for quantities greater than shown.
Minimum: 1   Multiples: 1
Unit Price:
-,-- €
Ext. Price:
-,-- €
Est. Tariff:

Pricing (EUR)

Qty. Unit Price
Ext. Price
11,70 € 11,70 €
9,62 € 96,20 €
8,90 € 222,50 €
8,39 € 419,50 €
8,14 € 8.547,00 €
2.520 Quote

Product Attribute Attribute Value Select Attribute
TE Connectivity
Product Category: Common Mode Chokes / Filters
RoHS:
RT-Series
PCB Mount
Through Hole
3 Channel
4.8 mH
- 30 %, + 50 %
8 A
17 mOhms
- 40 C
+ 100 C
46 mm x 46 mm x 34 mm
46 mm
46 mm
34 mm
Common Mode Chokes
Current Compensated Choke
Brand: TE Connectivity / Schaffner
Core Material: Ferrite
Country of Assembly: Not Available
Country of Diffusion: Not Available
Country of Origin: CN
Diameter: 46 mm
Lead Diameter: 1.3 mm
Product Type: Common Mode Chokes
Shielding: Unshielded
Factory Pack Quantity: 70
Subcategory: Inductors, Chokes & Coils
Test Frequency: 100 kHz
Part # Aliases: 816968-SF
Unit Weight: 90 g
