Kingbright WP7143 T-1 3/4 (5mm) Round Water Clear LEDs
Kingbright WP7143 T-1 3/4 (5mm) Round Water Clear LEDs are reliable and rugged with low-power consumption. WP7143 LEDs are offered in Blue, Green, Orange, and Red, and feature a Water Clear lens and a 30º viewing angle. The through-hole mount WP7143 LEDs offer an operating temperature range of -40ºC to +85ºC and are Pb-free and RoHS compliant.Features
- Outstanding material efficiency
- T-1 3/4 (5mm) package
- 30° viewing angle
- Dome lens
- Reliable and rugged
- Low current capability
- -40°C to +85°C operating temperature range
- RoHS compliant
Applications
- Status indicator
- Illuminator
- Signage applications
- Decorative and entertainment lighting
- Commercial and residential architectural lighting

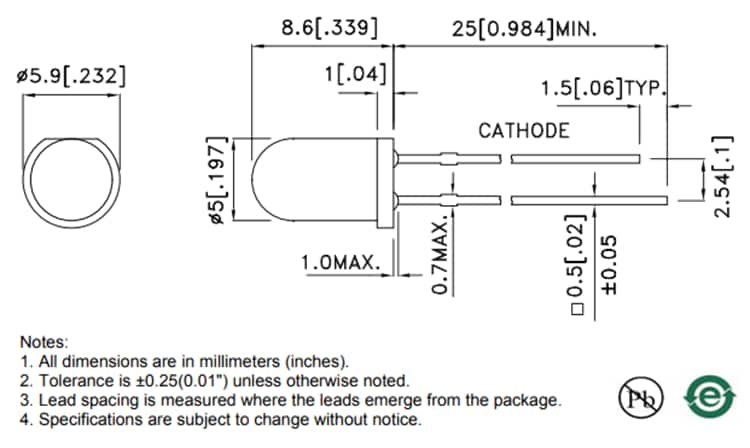

Package Dimensions
Published: 2010-01-15
| Updated: 2022-03-11
