Nisshinbo NJW4106-T1 Adjustable LDO Voltage Regulator IC

Nisshinbo NJW4106 Adjustable Low-dropout (LDO) Voltage Regulator IC is a 45V, Io= 500mA fast transient response low-dropout regulator. This voltage regulator IC achieves a fast transient response and offers stable output voltage at line or load fluctuations. The NJW4106-T1 voltage regulator IC provides high ADJ voltage accuracy that guarantees 1.24V±2.0% under conditions, VIN=Vo+1V to 40V, Io= 0mA to 500mA, and Ta=-40°C to 125°C. This voltage regulator IC features ON/OFF control, undervoltage lockout, thermal shutdown, and overcurrent protection. The NJW4106-T1 voltage regulator IC is AEC-Q100 grade 1 qualified, comes in a TO-252-5-L5 package, and is ceramic capacitor compatible. Typical applications include car infotainment, automotive ECUs, and industrial equipment.

Features

  • AEC-Q100 grade 1 qualified
  • Fast transient response
  • ON/OFF control
  • Ceramic capacitor compatible
  • Undervoltage lockout
  • Thermal shutdown
  • Overcurrent protection

Specifications

  • 4V to 40V wide operating voltage range
  • 2.5V to 16V adjustable output voltage range
  • 1.24V±2.0% high-accuracy ADJ voltage under conditions, VIN=Vo+1V to 40V, Io=0mA to 500mA, and Ta=-40°C to 125°C
  • 500mA minimum output current
  • -40°C to 125°C operating temperature range
  • TO-252-5-L5 package

Applications

  • Car infotainment
  • Automotive ECUs
  • Industrial equipment

Block Diagram

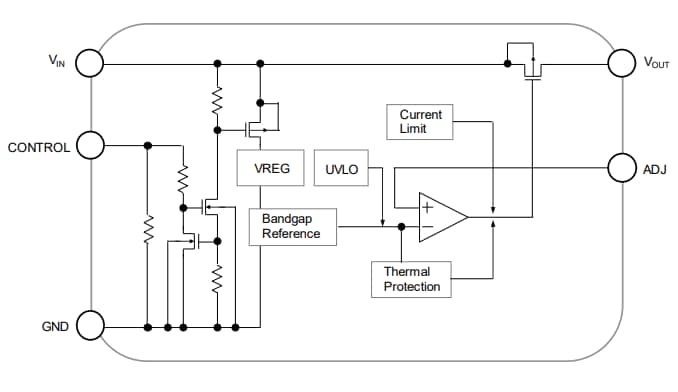

Block Diagram - Nisshinbo NJW4106-T1 Adjustable LDO Voltage Regulator IC

Typical Application Diagram

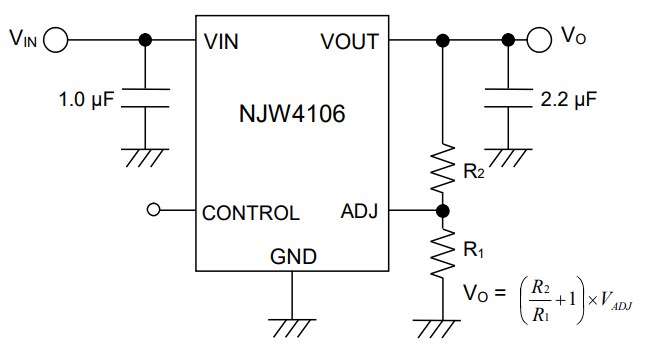

Application Circuit Diagram - Nisshinbo NJW4106-T1 Adjustable LDO Voltage Regulator IC

Package Dimensions

Mechanical Drawing - Nisshinbo NJW4106-T1 Adjustable LDO Voltage Regulator IC
Published: 2023-10-23 | Updated: 2024-01-25
